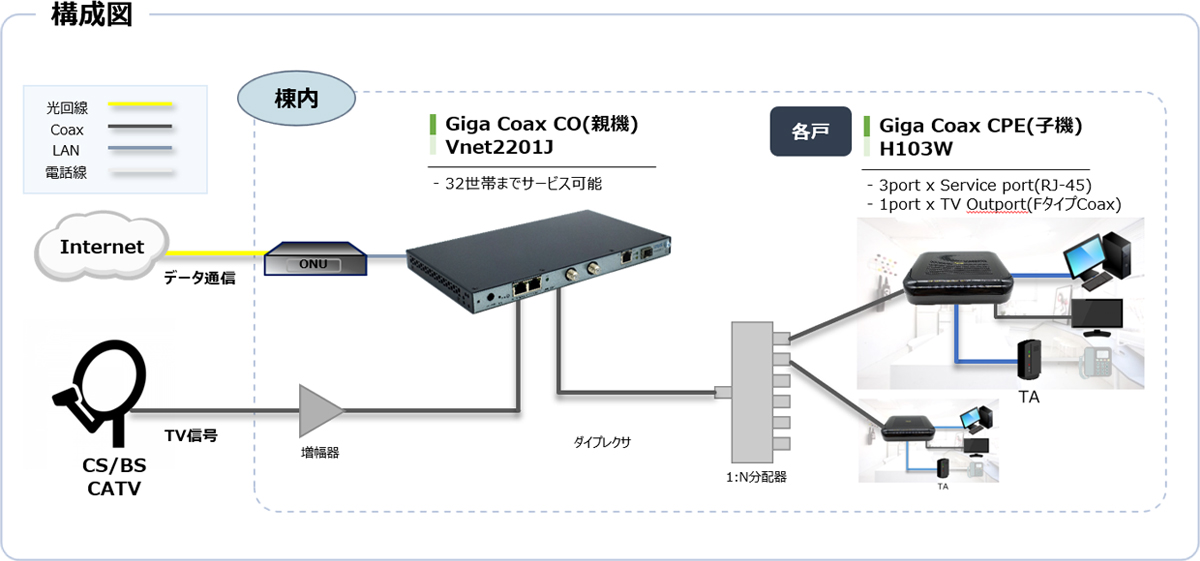

Giga Coax Solution
集合住宅向けとして別途工事することなく同軸線を利用して
ギガ級高速通信サービスが提供可能なソリューション
32世帯対応 Giga Coax CO
Vnet2201J
- 1port G.hn(Wave2) Coax Master System
- Management Interface
- 1port x Serial Console(RJ-45)
- G.hn Service Interface
- 1port x G.hn(F-Type Coax) - 32世帯Support
- Uplink port
- 1port x 100/1000BASE-T(RJ-45)
- 1port x 1000BASE-X(SFP)
Giga Coax CPE
H103W
- WAN Interface
- 1port G.hn(F-Type Coax)
- TV Interface
- 1port TV OUT(F-Type Coax)
- Wi-Fi : IEEE802.11b/g/n/ac
- LAN Interface
- 3port 100/1000BASE-T(RJ-45)
Giga Coax CO Vnet2201J
| インターフェース | ||
|---|---|---|
| Master System port | 1port x G.hn(Wave2) Coax Master System | |
| Downlink port | 1port x G.hn(F-Type Coax) - 32世帯Support | |
| Uplink port | 1port x 100/1000BASE-T(RJ-45), 1port 1000BASE-X(SFP) | |
| Console port | 1port x Serial Console(RJ-45) | |
| 性能 | ||
| General | 128Gbps Switch Capacity | |
| Internal MIPS-34Kc with MMU(800Mhz) | ||
| 32Kbyte I-Cache and 32Kbyte D-Cache | ||
| Memory : 64MB NOR Flash, 1GB DDR3 SDRAM | ||
| サービスと特長 | ||
| Layer2 Switch |
Standard Ethernet Bridging, Managing 16K MAC address entries, IEEE 802.1Q tagged frame supporting 4K VLANs, port/MAC/Subnet/Protocol-based VLAN, VLAN stacking, Q-in-Q, Spanning Tree Protocol(STP/RSTP/MSTP/PVSTP/PVRSTP), port mirroring, Storm and Flow control, Self loop Detection, PPPoE-IA |
|
| Multicast | IGMP v1/v2/v3, Snooping, Immediate leave, MVR | |
| Quality of Service | 4 Queues per port, Traffic Scheduling(SPQ, WRR, WFQ), Diff Serv., Ingress/Egress Rate Shaping | |
| Security |
SSH v1/v2, RADIUS, TACACS+ Authentication, MAC/port based authentication according to 802.1x Ethernet type / L4-based ACL, DHCP Filtering, MAC Filtering |
|
| Management |
Serial/Telnet CLI, SNMP v1/v2/v3, WEB, DHCP server, relay agent with option82, RMON, Syslog, Software Download/ Upgrade, Configuration Download/ Upload, Private OAM for CPE management |
|
| IPv6 | IPv6, ICMPv6, MLD v1/v2, DHCPv6 Server/Client/Relay | |
| 環境条件 | ||
| LED | System Status LEDs | RUN |
|
Service port Status LEDs |
G.hn LINK | |
| 1GB-T : LINK/ACT, SPEED | ||
| 1GB-X : LINK, ACT | ||
| 電源仕様 | Input: AC 100 ~ 240V, 50/60Hz, Output: DC 12V/2A, Power Consumption: 5% ~ 95% non-condensing | |
| 動作温度 / 動作湿度 | 0 ~ 50℃/5% ~ 95% | |
| サイズ / 重量 | 200mm(W) x 150mm(D) x 22mm(H)(本体のみ)/ 未定 | |
Giga Coax CPE H103W
| 項目 | 特長 | |
|---|---|---|
| インターフェース | WAN | 1port x G.hn(F type Coax) |
| TV | 1port x TV OUT(F type Coax) | |
| LAN | 3port x 10/100/1000BASE-T(RJ-45) | |
| 電源 | 1port x DC-Jack | |
| その他 |
Modulate: OFDM, RF Output Impedance: 75 ohm, Transfer frequency band:2 ~ 200MHz, Downlink and Uplink Protocol: CSMA/CA, TDMA. Security:128-DES, Power Supply: Adapter : 5V/2A |
|
| サービスと機能 |
Bandwidth limitation, QoS integrated, IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X), IEEE 802.11a/b/g/n/ac, DHCP Relay, DHCP option 82, VLAN, IGMP v1/v2 Snooping, Immediate leave, Self loop Detection, Access Control List, MAC Filtering, IPv6, MLD v1/v2 Snooping, Private OAM for CPE Management, WEB GUI |
|
| LED | PWR/G.hn/ETH/Wi-Fi Light | |
| 電源仕様 | 入力 : AC 100 ～ 240V, 50/60Hz | |
| 出力 : DC12V 2A | ||
| 電力消費 | 未定 | |
| 動作温度 / 動作湿度 | 0 ~ 40℃/20% ~ 90% | |
| サイズ / 重量 | 190mm(W) x 150mm(D) x 40mm(H)(本体のみ) / 未定 | |
