Gigabit L3 Switch Series

効率的な機能と速い処理速度を持つエンタープライズ向けスイッチ





高品質なサービス提供のための多様な機能搭載
  • Q in Q、select Q in Qサポート
  • IPv4/IPv6サポート
  • IEEE 802.1Xサポート

通信の優先制御を行う多彩なQoS機能搭載

高品質のパフォーマンスに
大容量の電力供給(PoE)をサポート
  • IEEE 802.3af/IEEE 802.3atサポート
  • ポート別のPoE Priority設定可能
  • PoE Timerで時間帯別On/OFF設定可能

※PoE対応はGPモデルに限ります。

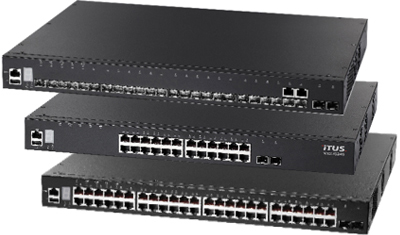

Gigabit L3 Switch
Vnet6024F
  • Switching容量：128Gbps(Non-blocking Switching)
  • 24Port x 1000Base-X(SFP)
  • 4Port x 1G/10G(SFP/SFP+)(2port+拡張スロット2port)


Gigabit L3 Switch
Vnet6024G/GP
  • Switching容量：128Gbps(Non-blocking Switching)
  • 24Port x 10/100/1000Base-T
  • 4Port x 1G/10G(SFP/SFP+)
  • PoE給電：Max 410W(GPモデルのみ)


Gigabit L3 Switch
Vnet6048G/GP
  • Switching容量：176Gbps(Non-blocking Switching)
  • 48Port x 10/100/1000Base-T
  • 4Port x 1G/10G(SFP/SFP+)
  • PoE給電：Max 780W(GPモデルのみ)
モデル名 Vnet6024F Vnet6024G Vnet6024GP Vnet6048G Vnet6048GP
インターフェース
Downlink port 24port x 10/100/1000Base- 24port x 10/100/1000Base-T 48port x 10/100/1000Base-T
Uplink Port Max 4port x 10G SFP+/1G SFP(2port + 拡張スロット2port)
Console port 1Port RS232(RJ-45)
性能
Switch容量 128Gbps non-blocking 176Gbps non-blocking
Throughput 95.23Mpps wire-speed 130.94Mpps wire-speed
IPv6 Enabled
PoE Not Support Not Support IEEE 802.3af/at Not Support IEEE 802.3af/at
PoE Power Budget Not Support Not Support Max 410W Not Support Max 780W
容量
MAC Address Up to 16K MAC Addresses Management
VLAN Up to 4K VLANs
サービスと特長
Layer 3

IPv4(Static unicast routes, Equal cost multipath routing(ECMP), RIP v1/v2, OSPF, BGP4+, PIM-DM,

IGMP v1/v2, IGMP v1/v2 proxy, IGMP v3, IGMP v3 proxy, PIM-SM, VRRP, Proxy ARP, UDP Helper)

IPv6(PIM-DM6, PIM-SM6, IPv6 static route, OSPFv3, MLD v1/v2)
Layer 2

Auto-negotiation for port speed and duplex mode, IEEE 802.1Q Tagged VLAN,

Protocol/Port/MAC/IP Subnet/Private/Guest/Voice based VLAN, GVRP/GARP,

Link Aggregation(802.3ad), Multicast VLAN Registration, Q-in-Q, UDLD, ERPS,

HW Stacking, DHCP INFO/Relay/Snooping/Snooping with Option 82/Dynamic Provision(Option 66,67),

STP, RSTP, MSTP, PVST, Non-STP Loopback Detection, Root Guard,

Spanning Tree Fast Forwarding, Auto Edge port
IP Multicasting Protocol

IGMP v1/v2 Querier, IGMP v1/v2/v3 Snooping, IGMP Filtering/Throttling/Authentication/Immediate Leave,

Source Filtering Mode Data Forwarding
QoS

Traffic Classification(L2/L3/L4), Traffic Control(Marking, Remarking:802.1p COS, DSCP,

PHB, port-based default priority), Queue Scheduling(Strict Priority, WRR, Strict Priority + WRR),

8 priority queues, Diffserv, Ingress Rate limiting(Port), Egress Rate limiting(Port)
IEEE 802.1X port/MAC based Authentication, EAPOL Frames Pass-Through, Supplicant support
Security

Access Control List(L2/L3/L4, IPv6, Time-Based), Dynamic VLAN/QoS assignment,

MAC/Web Authentication, Packet Filtering of L2 control CDP/PVST, DDM,

Flow Control(IEEE 802.3x for full-duplex mode, Back-pressure for half-duplex mode)

Storm-Control(Broadcast, Multicast, Unicast), Intrusion Lock, HTTPS and SSL, Dos Protection,

PPPoE Intermediate Agent, DAI, BPDU Guard/Filtering/Forward, AAA(RADIUS, TACACS+, SSH 1.5/v2.0),

Management Interface Access Filtering(SNMP, Web, Telnet)
OAM

SNMP v1/v2/v3, RMON Group 1/2/3/9, Syslog/Remote log/SMTP, DNS(Client/Proxy), CLI, Telnet,

TFTP, FTP, TACACS+, RADIUS, MIB I/II, SSH v2, port/VLAN/MAC/ACL/Remote port based Mirroring,

IP Source Guard, SNTP,NTP, IP Clustering, sFlow, Auto Traffic Control, IEEE 802.1ab LLDP(LLDP/LLDP-MED),

IEEE 802.3ah Link, IEEE 802.1ag Connectivity Fault Management(CFM)
環境
Power Input 100-240 VAC, 50/60Hz
Power Consumption Max 42W Max 35W Max 49W Max 55W Max 65W
Dimension 440(W) x 315(D) x 44(H) mm
Weight 3.8kg 3.7kg 4.5kg 5.4 kg 6.5kg
Temperature Operating: 0~45℃, Storage: -40~70℃
Humidity 10~90%(non-condensing)
